VOYAGER V10 NEODRIVES E-BIKE
Performance meets comfort
Traveling from one place to another can be a source of joy rather than an unwanted necessity. The Voyager is a powerful and comfortable trekking e-bike that proves its reliability and adds a touch of elegance to your daily commute. The exceptional quality of this e-bike is revealed as soon as you pedal. Get on our Voyager and make the most of your day!

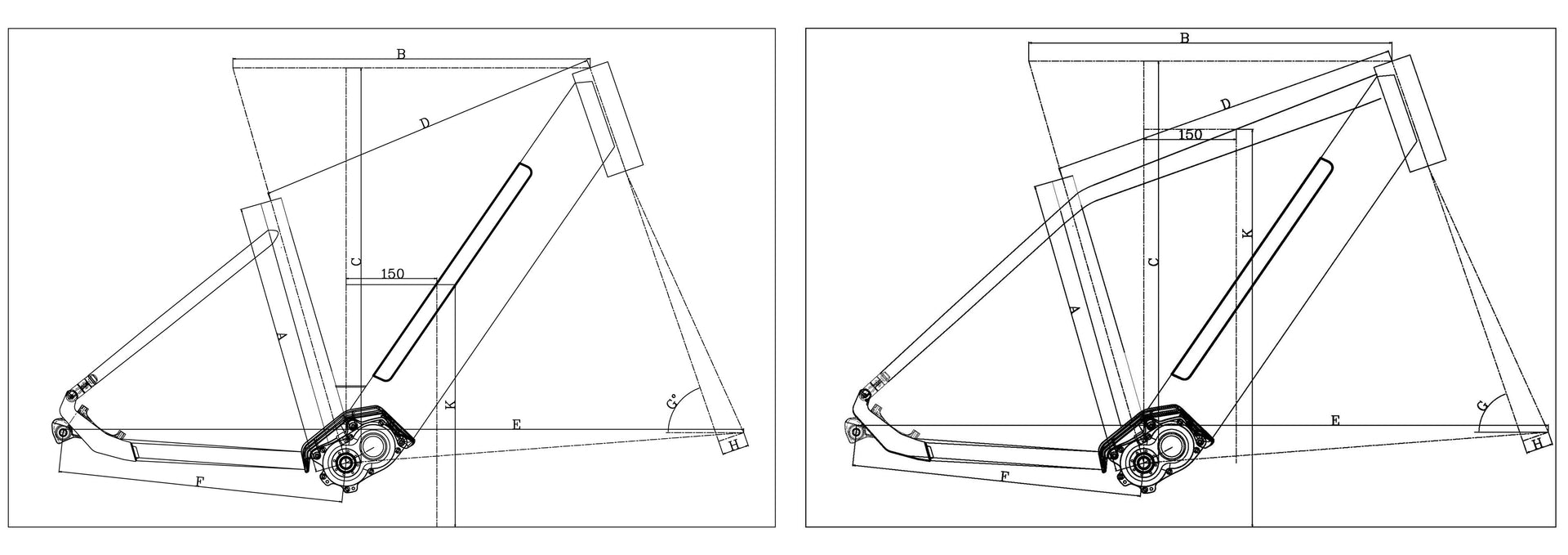

Geometry data Voyager V10
classic S | classic M | classic L | low S | low M | low-L | |
---|---|---|---|---|---|---|
Frame height A (mm) | 480 | 530 | 580 | 450 | 480 | 530 |
Reach B (mm) | 403 | 415 | 428 | 403 | 415 | 428 |
Stack C (mm) | 652 | 662 | 671 | 652 | 662 | 671 |
Top tube length D (mm) | 571 | 582 | 599 | 571 | 582 | 596 |
Wheelbase E (mm) | 1124 | 1140 | 1156 | 1124 | 1140 | 1156 |
Chainstay length F (mm) | 470 | 470 | 470 | 470 | 470 | 470 |
Head tube angle G (degrees) | 71 | 71 | 71 | 71 | 71 | 71 |
Lead H (mm) | 44 | 44 | 44 | 44 | 44 | 44 |
Overhang height K (mm) | 800 | 840 | 880 | 400 | 440 | 480 |
Specifications
Components
Frame
MÖVE Bikes/ 160 kg permissible total weight
Paintwork &
logo
water transfer decor and powder coating, individual, single-color wet painting (available on request with an additional charge)
Gearshift
Pinion C1.12 with 12 gears and twist shift handle or Pinion C1.12 Smart Shift (available with an additional charge)
Belt
Gates Carbon Drive
Front pulley
32 T
Rear pulley
23 T
E-drive
Neodrives Z20
Battery
BMZ 725 Wh and 36V
Control

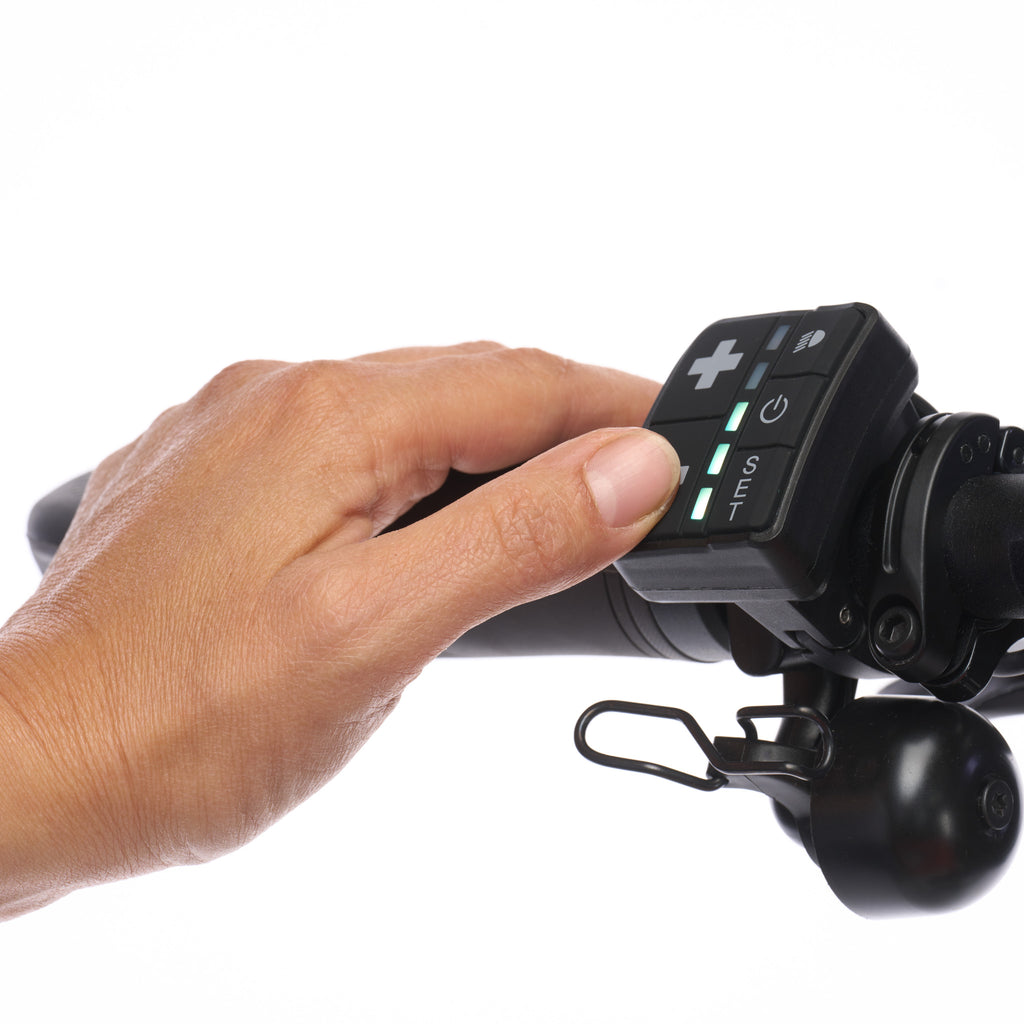

Neodrives Simply Remote
Brakes
Shimano CUES 8000
Front brake disc
Shimano RT 66 180mm
Rear brake disc
Shimano RT 66 160mm
Stem
Ergotec Sepia (angle adjustable)
Handlebar
Low Riser Bar
Grips
Ergon GA3
Seat post (selectable)
Alu 6061 350mm
Mudguards
Alumee 62mm
Suspension fork
RockShox Paragon Gold
Headset
fully integrated, industrial bearing with integrated cable routing
Front lighting
Supernova M99 Mini Pro25
Rear lighting
Supernova Tail Light 2
Luggage carrier
Racktime Snap it 2.0
Front hub
aluminum, industrial bearings
Rims
Ryde Andra 40 in 27.5 inches
Spokes
NIROSTA
Tires
Schwalbe Marathon Allmotion Performance Race Guard 55-584
Tubes
Schwalbe AV 19
Stand
Ursus Wave 40 black matt
Technical data
Color
deep black matt (RAL 9005), signal white glossy (RAL 9003), pine green (RAL Classic 6028), rose hip (RAL Effect 430-6), sea breeze (RAL Effect 670-3), shell gray (RAL Effect 840-3), ultramarine blue (RAL 5002), dune grass (RAL Effect 760-3)
frame height diamond
S/M - 48 cm frame height (for body height between 1.60 and 1.75 m), M/L - 53 cm frame height (for body height between 1.75 and 1.90 m), L/XL - 58 cm frame height (for body height over 1.90 m)
Uni Wave frame height
S/M - 45 cm (for heights between 1.50 and 1.70 m), M/L - 50 cm (for heights between 1.70 and 1.80 m), L/XL - 55 cm (for heights over 1.80 m)
Weight
from 26.9 kg in the basic configuration with pedals
Motor power
250 watts continuous power and 600 watts peak power
Motor torque
40 Nm directly on the rear wheel
Battery energy content / weight
725 Wh / 4.4 kg
Acceleration 0 to 25 km/h
3.2 seconds
Push assistance
up to 4 km/h
Range
up to 160 km in support level 1 or up to 80 km in support level 5
Charging time / charger
From 0 to 100% in 3.0 hours / 5 A charging current
Supported speed
25 km/h
Warranty
10 years on MÖVE frame,
2 years on attachments (excluding wearing parts)
Control

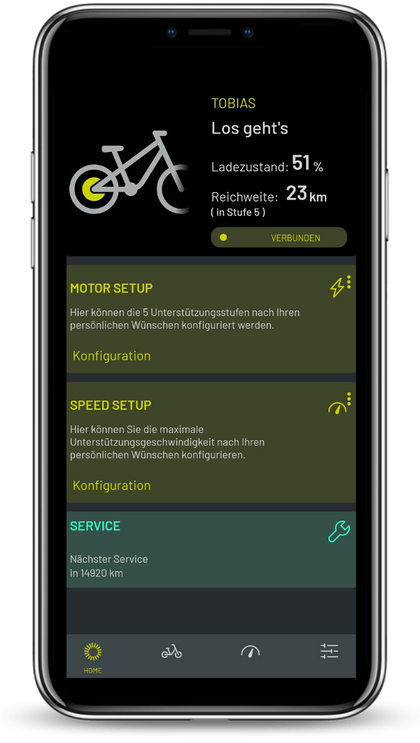

Simply Remote, and Simply Ride IOS and Androis App
Price
€6,990.00 EUR* incl. VAT.
in the basic equipment
Delivery time
From week 4 - 2024 approx. 6 after receipt of order
Upgrade
GEARBOX
electric Pinion C1.12 Smart Shift with 12 gears +600,- Euro
ANTI-THEFT PROTECTION
I Lock it GPS including radio remote control for key chain +250,- Euro
